Oil-Alert, Carbon Adsorber-Alert, Extractor-Dryer-Indicator Adsorber Filters

Easy Maintenance

As the coalescer media adsorbs oil, the element changes from white to red. As oil saturation progresses, the color gradually rises and becomes brighter. This provides an early indication for element replacement and monitors oil carry-over. By changing the element before the red reaches the top, you prevent downstream contamination.

· · Specifications
· · Filter Oil-Alert (OA Series)
· · Carbon Adsorber-Alert (AD Series)
· · Extractor-Dryer-Indicator (EDI Series)

Removes and monitors oil aerosol carryover.

Step 1: Separation area works by impingement, direction change and expansion; separates particles and liquid droplets

Step 2: Prefilter removes dirt particles, keeping coalescer more effective.

Step 3: Coalescer removes liquid oil and oil vapors.

Step 4: Coalescer Plus turns from white to bright red as it adsorbs oil aerosols.

Step 5: After Filter prevents migration of coalescing media.

Step 6: Final Filter ensures the quality of outgoing air.

Adsorbs and monitors oil vapor carryover.

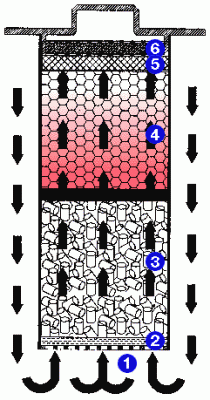

Step 1: Separation area works by impingement, direction change and expansion; separates particles and liquid droplets.

Step 2: Prefilter removes dirt particles, keeping coalescer more effective.

Step 3: Activated Carbon

Step 4: Coalescer Plus turns from white to bright red as it adsorbs oil aerosols.

Step 5: After Filter prevents migration of coalescing media.

Step 6: Final Filter ensures the quality of outgoing air.

For dirt, oil, and moisture. Ideal for point-of-use protection.

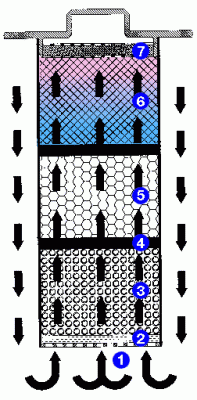

Step 1: Separation area works by impingement, direction change and expansion; separates particles and liquid droplets.

Step 2: Prefilter removes dirt particles, keeping coalescer more effective.

Step 3: Coalescer removes liquid oil and oil vapors

Step 4: Intermediate Filter.

Step 5: Activated Alumina.

Step 6: Blue Indicator Desiccant (Turns pale pink when saturated)\

Step 7: Final Filter ensures the quality of outgoing air.

Notes:

· Capacity @ 100 PSIG (6.9 Bar G)
· Suffix 'T' indicates unit with acrylic tube, maximum allowable working pressure 150 PSIG (10.35 Bar G).
Suffix 'M' indicates unit with carbon steel tube, maximum allowable working pressure 250 PSIG (17.25 Bar G).
· Maximum allowable temperature is 150F (65.5C)

Recommended Specifications

Oil -Alert

The indicating filter shall incorporate six steps -separation, pre-filter, coalescing, indicator plus coalescing, after-filter, and final filter. The indicator plus coalescing shall turn white to red as it adsorbs oil.

Carbon Adsorber -Alert

The indicating adsorber shall incorporate six steps -separation, prefilter, activated carbon, indicator plus coalescing, afterfilter, and final filter. The indicator plus coalescing shall turn white to red as it adsorbs oil.

Extractor -Dryer -Indicator

The Extractor -Dryer -Indicator shall be suitable for point-of-use filtration and drying. It shall incorporate seven steps -separation, prefilter, coalescing, intermediate filter, activated alumina, indicator desiccant, and final filter. The indicator desiccant shall turn blue to pink with moisture adsorption.

Quality Features

Multi-Step separation
Visible Warning
Lower Pressure Drop -Alert Series have a nominal pressure drop of 2-6 PSIG. To provide equivalent filtration with conventional filters, you need several with a total pressure drop of 5-10 PSIG.
Highly Efficient Adsorbant Media
Two Safety Options -the expanded metal safety shield is standard in filters with transparent poly-carbonate housing.
The metal housing with dual sight glass is available for applications where poly-carbonate housings may not be as safe.
Dual Sight Glass -In filters encased in metal housing, light enters one port as you look through the other.
Back-Saver Feature -Larger filters (2" [50.8mm] NPT and up) have a built-in lift mechanism to avoid back injury and reduce maintenance time.
Multi -step separation provides maximum protection.
