Coalator

Coalator

Coalescing + Separation

In a Pioneer Coalator filter, the mechanical separation takes place just before the air/gas stream flows through the coalescing media. The coalescing element is open to the separation chamber, allowing condensate to fall, thus preventing re-entrainment.

The separation chamber also doubles as a condensate accumulator.

· Quality Features

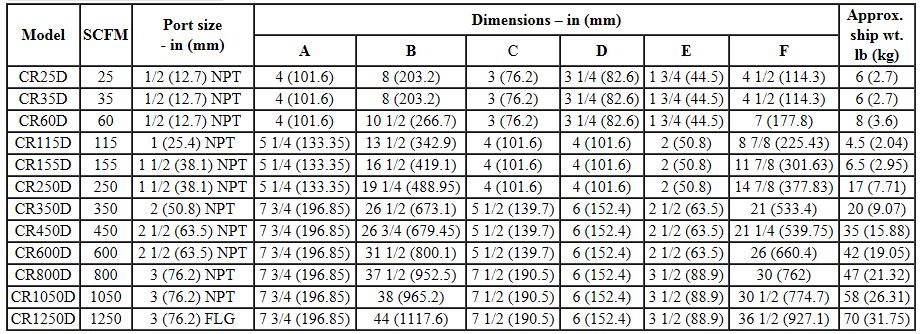

· Specifications

Higher overall efficiency. Coalescer's exposure to condensed fluids is virtually eliminated.
Large condensate holding chamber provides extra protection to coalescer.
Easier installation -additional separator and drain are not required.
Lowest overall cost -saves on equipment and installation costs.

Specifications subject to change without notice

Notes:

@100 PSIG (6.9 Bar G) and 225F (107C)
Filters come with initial element(s)
'D' indicates differential pressure gauge

Maximum Operating Pressure: 150 PSIG (10.35 Bar G)

Coalator Recommended Specifications

The Pioneer Coalator shall be constructed of a heavy duty steel vessel, internally coated for rust prevention. It shall incorporate a multi-step impingement separator and a high efficiency microfiber coalescer. The coalescing element shall be open to the separation chamber, allowing condensate to fall, thus preventing re-entrainment. The coalator shall have a removable top for easy element replacement. The coalator shall include a differential pressure indicator to signal element change.
